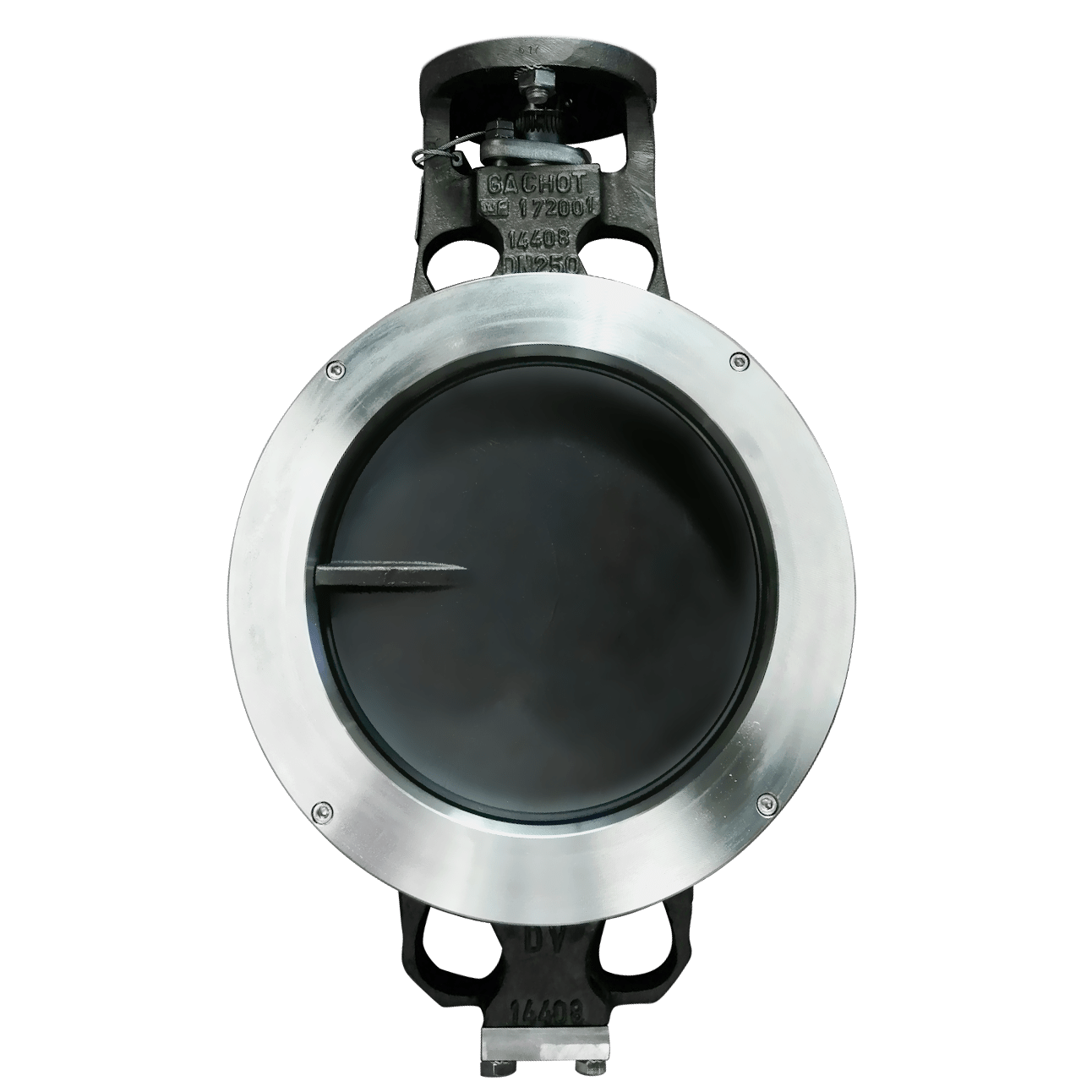

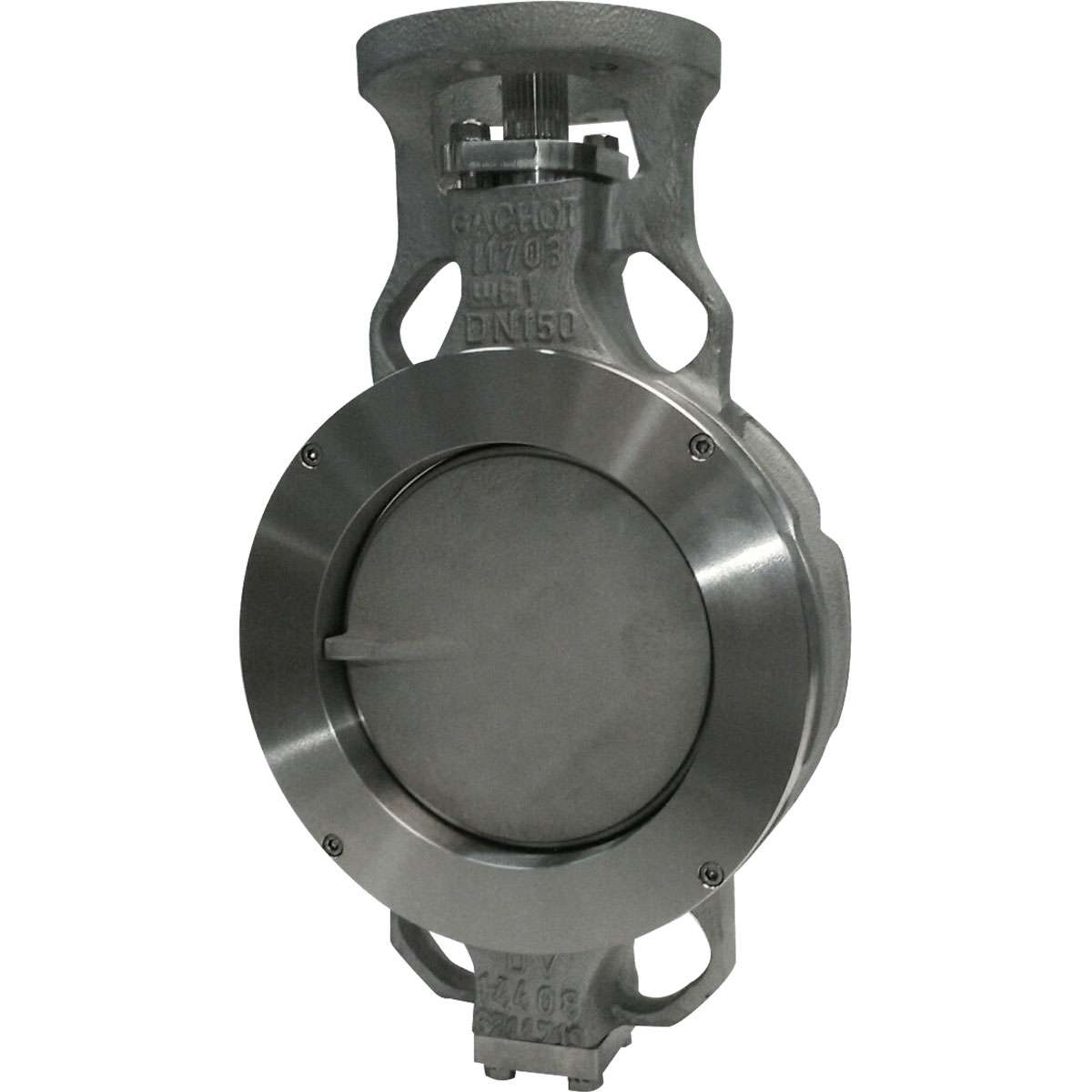

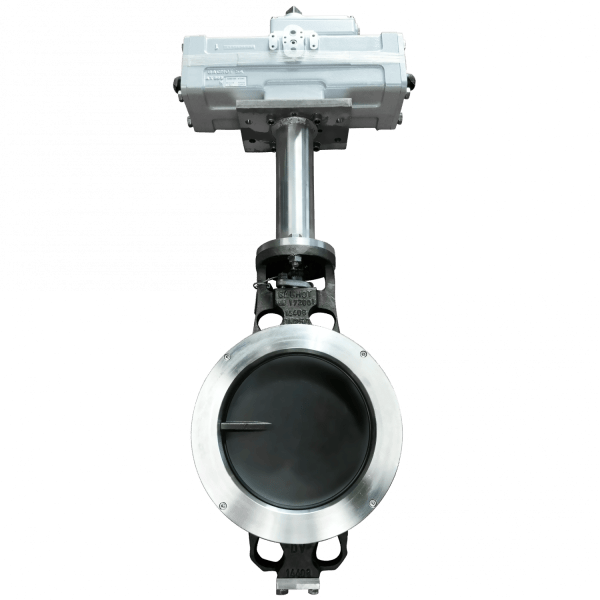

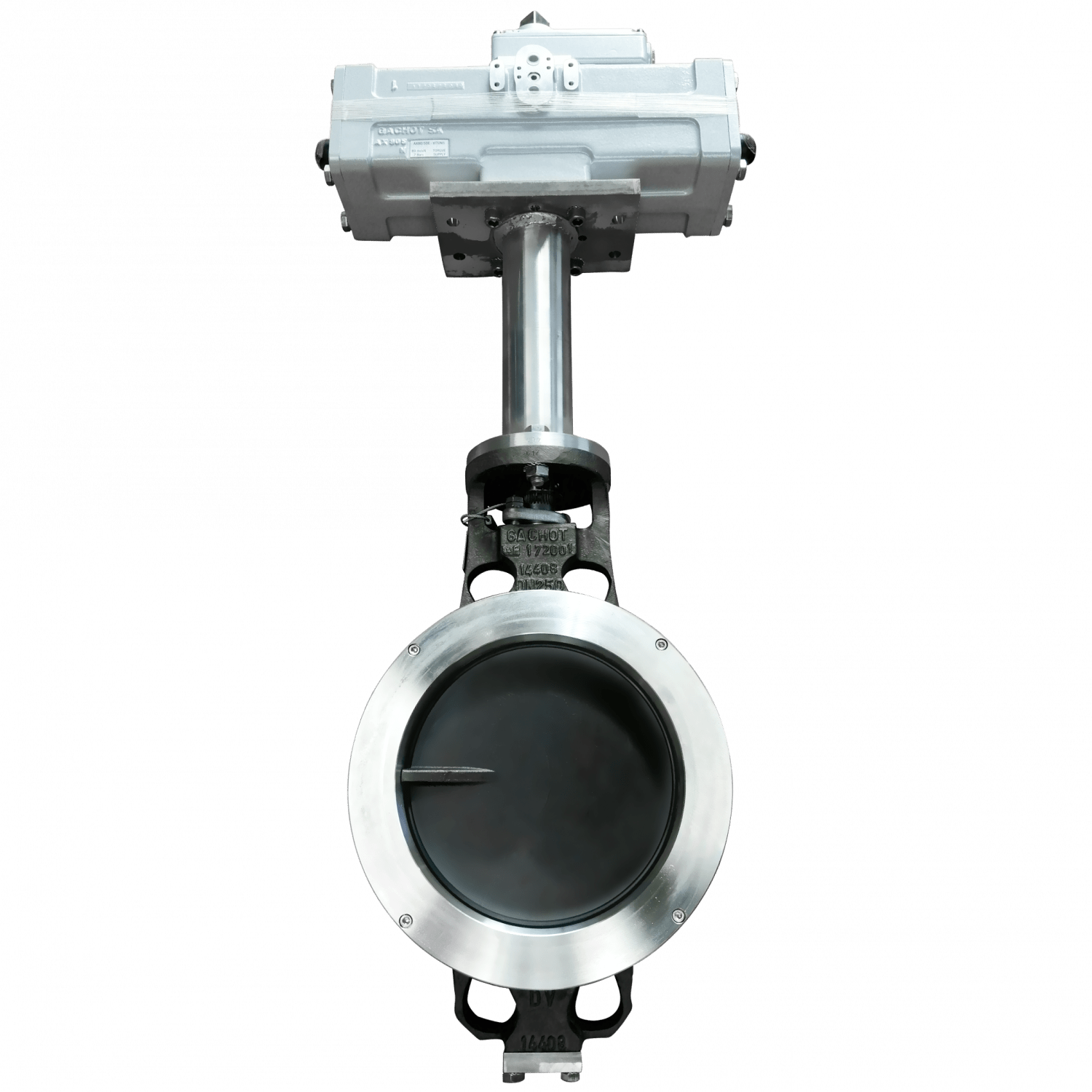

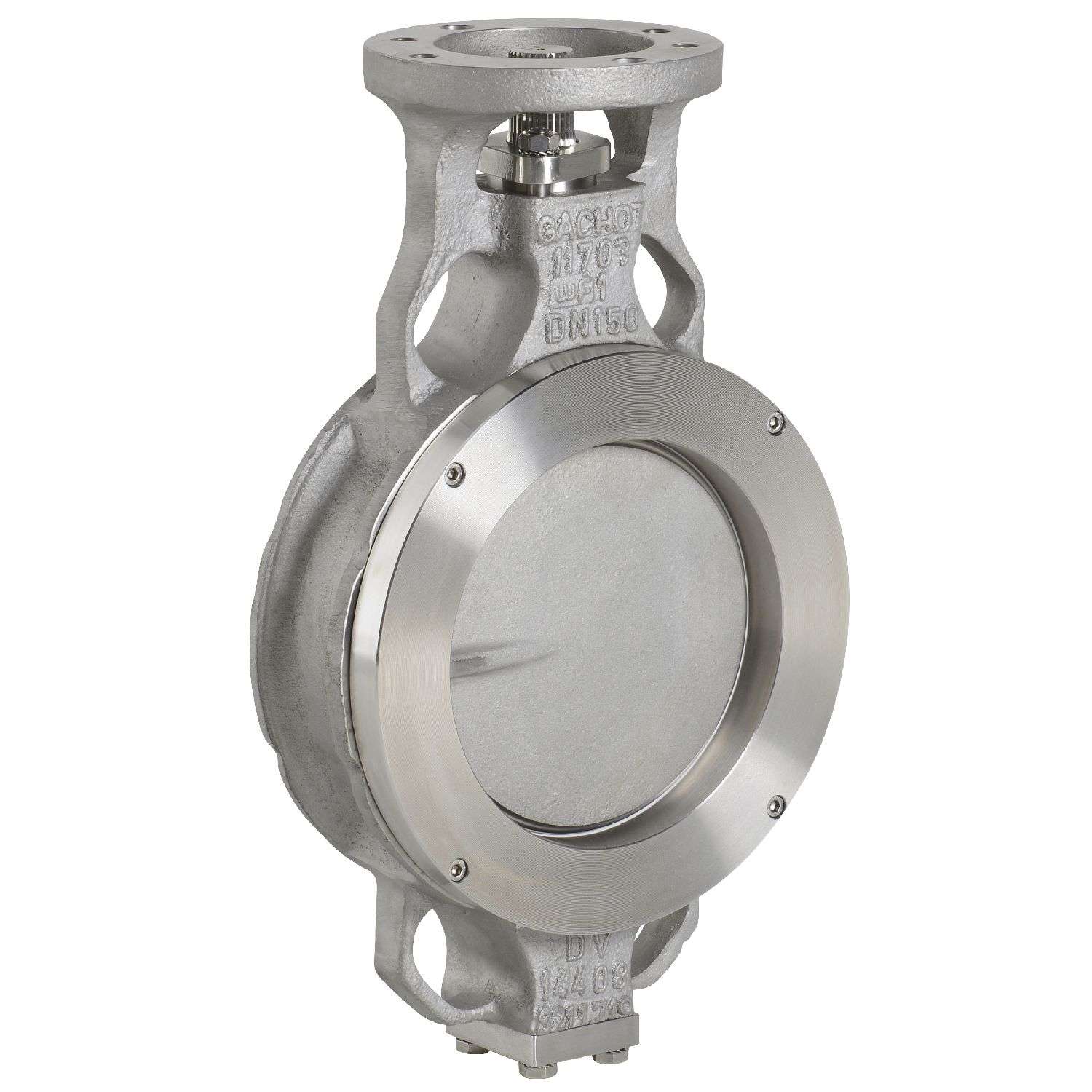

HIGH PERFORMANCE BUTTERFLY VALVE

Discovanne Gachot® High Performance Butterfly Valve provides effective bidirectional sealing over a wide temperature range. Discovanne Gachot® High Performance Butterfly Valve provides effective bidirectional sealing over a wide temperature range. General applications: Chemical and petrochemical industry General industry Paper industry Shipbuilding Food industry Energy production network (power plants, general industries)

Quantity

No purchase — we'll send you a quote

Brand: Unknown

Technical Data

Valve size (DN) : 50 – 300
Working pressure (bar) : 50 max (acc.DN)
Températures (°C): -196 / 550
Double offset
Leakage Rate : EN12266-1 – Rate A (no leakage) (Siège PTFE)

Certifications and approvals

Fire Safe : API 607-ISO 10497
Electrical continuity
Marine : Qualified by Man Diesel

Flange type

Wafer
PN 10/16/20/25/40/50
ANSI 150/300

Advantages:

Face to face : ISO5752 S16 (option : S20)
High flow rate coefficient Kv
Low torque
