Technical Data
- Valve size (DN) : 40 – 3000
- Working pressure (bar) : 25 max (acc.DN)
- Températures (°C): -29 / 170
- Bidirectional design
Leakage Rate : EN12266-1 – Rate A (no leakage)
Certifications and approvals
- Marine : Bureau Veritas, DNV
- Oil : Total
- Fire protection : UL, VDS
- Potable water : ACS, WRAS, PSB
- Food : FDA, CE1935
Electrical continuity
Flange type

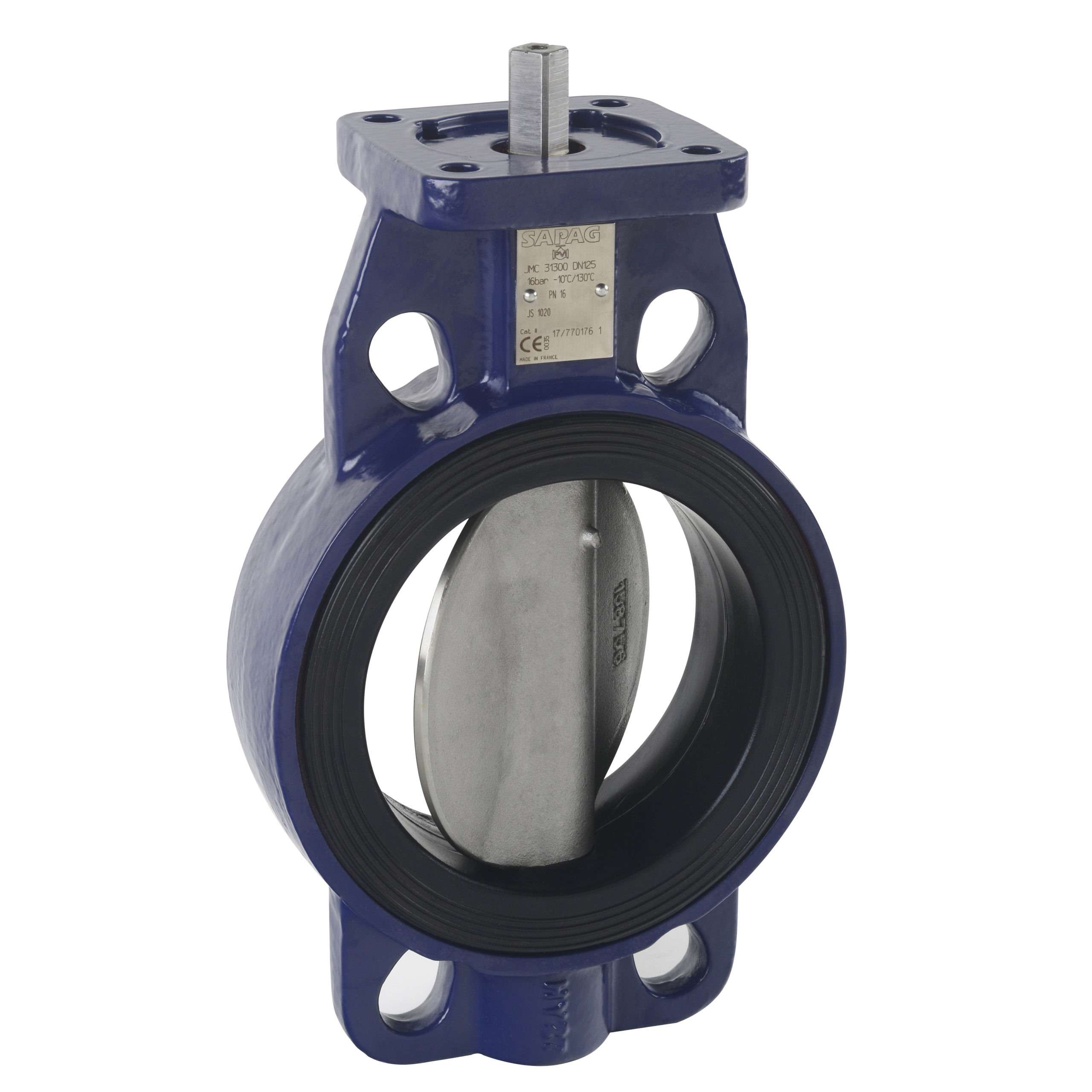

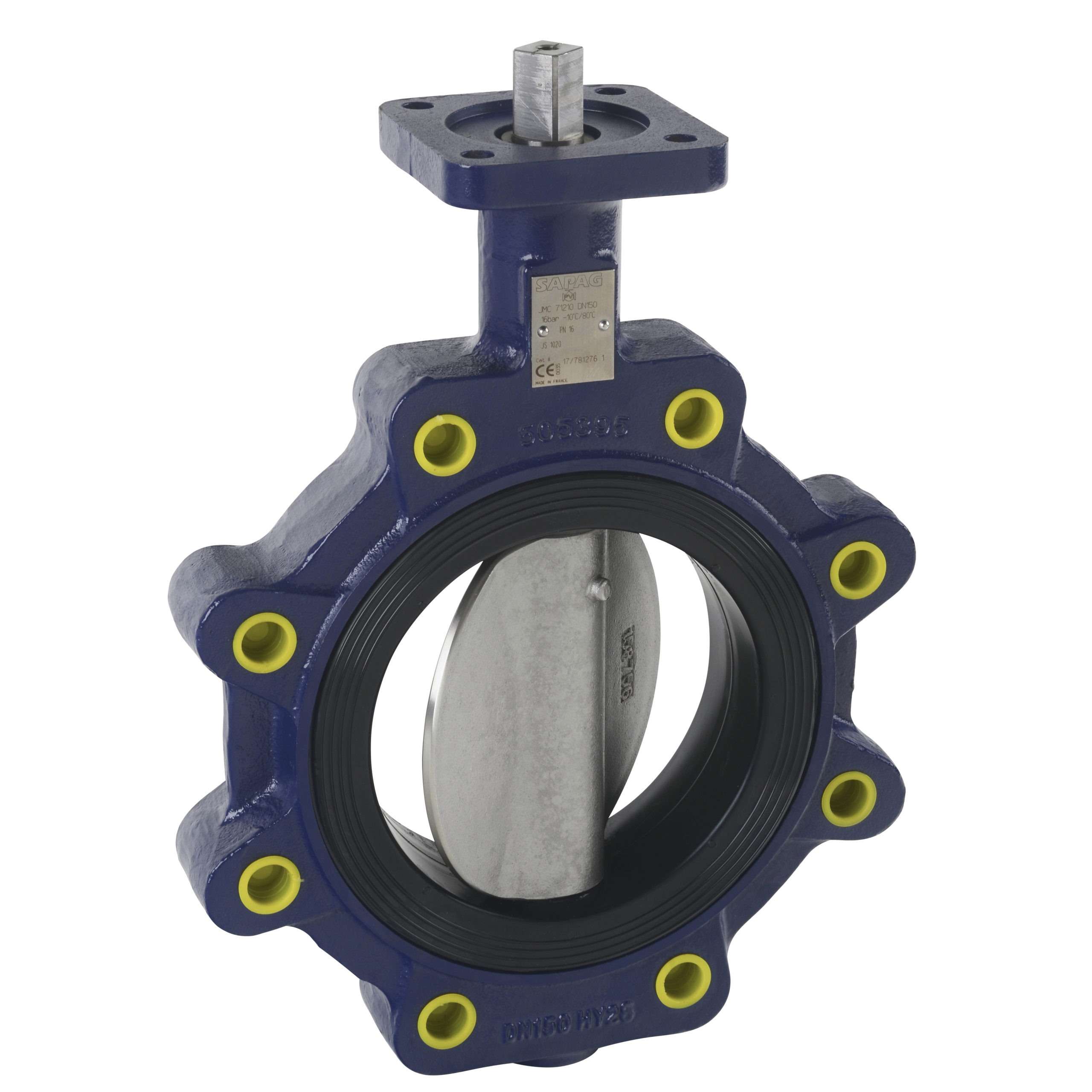

- Wafer / Lug / Double Flange
- PN 10/16/20/25/40/50
- ANSI 150/300
Others : on request
Advantages:
- Face to face ISO 5752 – S20
- Low weight
- High flow rate coefficient Kv
- High resistance to external stress
- Dryshaft design
- Large range of seat and dics materials
- Seat Mechanical anchorage in the body.
Elastomeric seat of Very high Quality (Origin : France)
