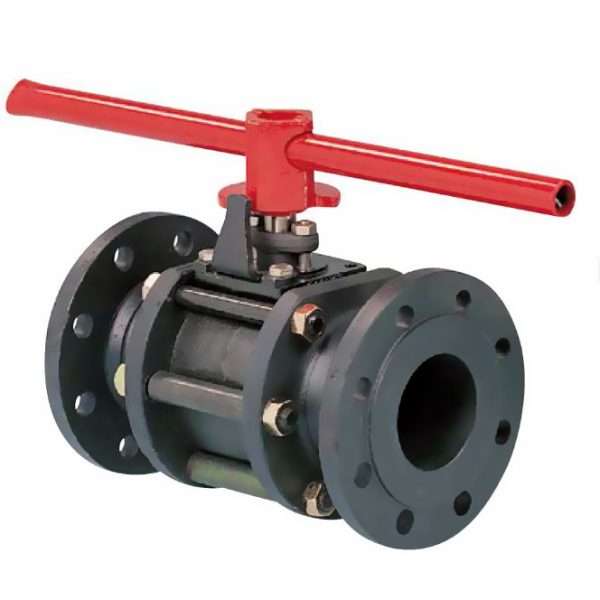

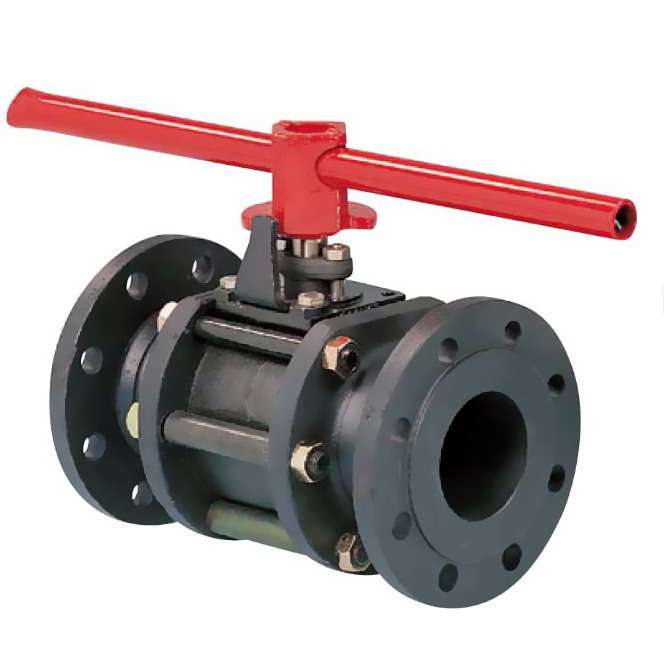

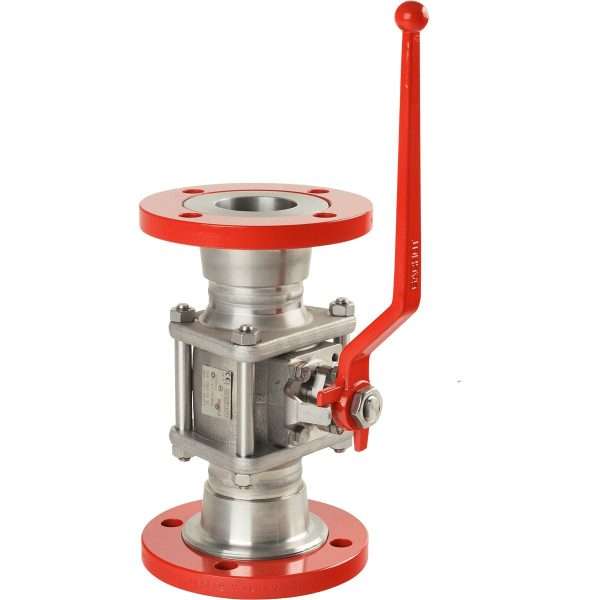

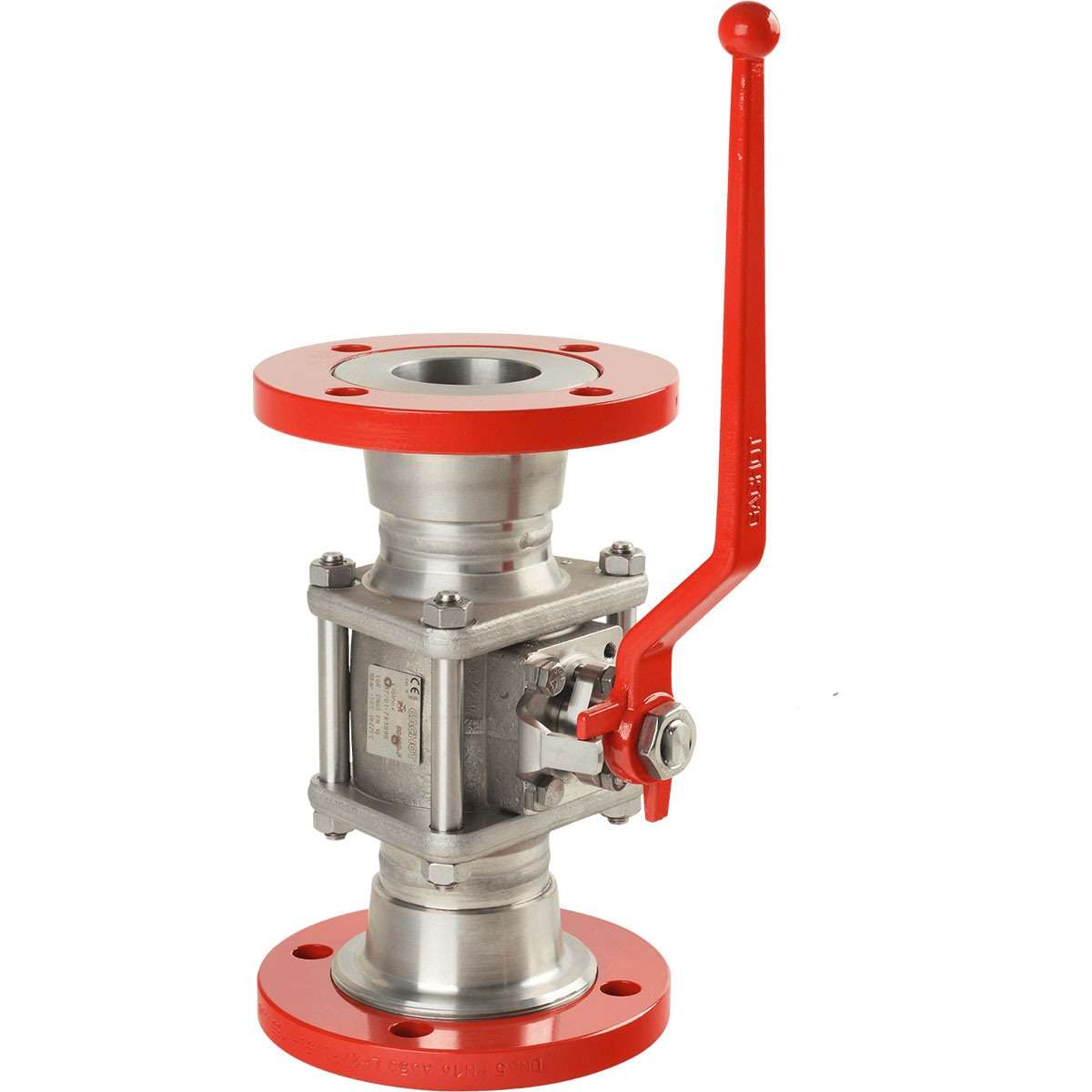

THREE PIECE BALL VALVE

V16 Gachot ® Three piece Ball Valve with unique design for easy and quick installation and maintenance. V16 Gachot ® Three piece Ball Valve with unique design for easy and quick installation and maintenance. General applications General industry, Chemical and petrochemical industry, Shipbuilding, etc.

Certifications

EN 12982

Quantity

No purchase — we'll send you a quote

Brand: Unknown

Technical Data

Valve size (DN): 8 – 200
Working pressure: 100 bar max (acc.DN)
Temperatures: -50 °C / +305 °C
Reduced bore / Full bore
Carbon / Stainless steel version (others: on request)
Leakage Rate: EN12266-1 – Rate A (no leakage)

Options

3 ways ball valves (L or T shape)
Heating jacket
Sight Glass
Check valve
Electrical continuity

Flange type

Flange / BW / SW / Tapped

Advantages:

Face to face: ISO5752-S01 (Flanged)
Face to face: EN 12982 (BW/SW – stainless steel version)
Anti blowout system in standard
